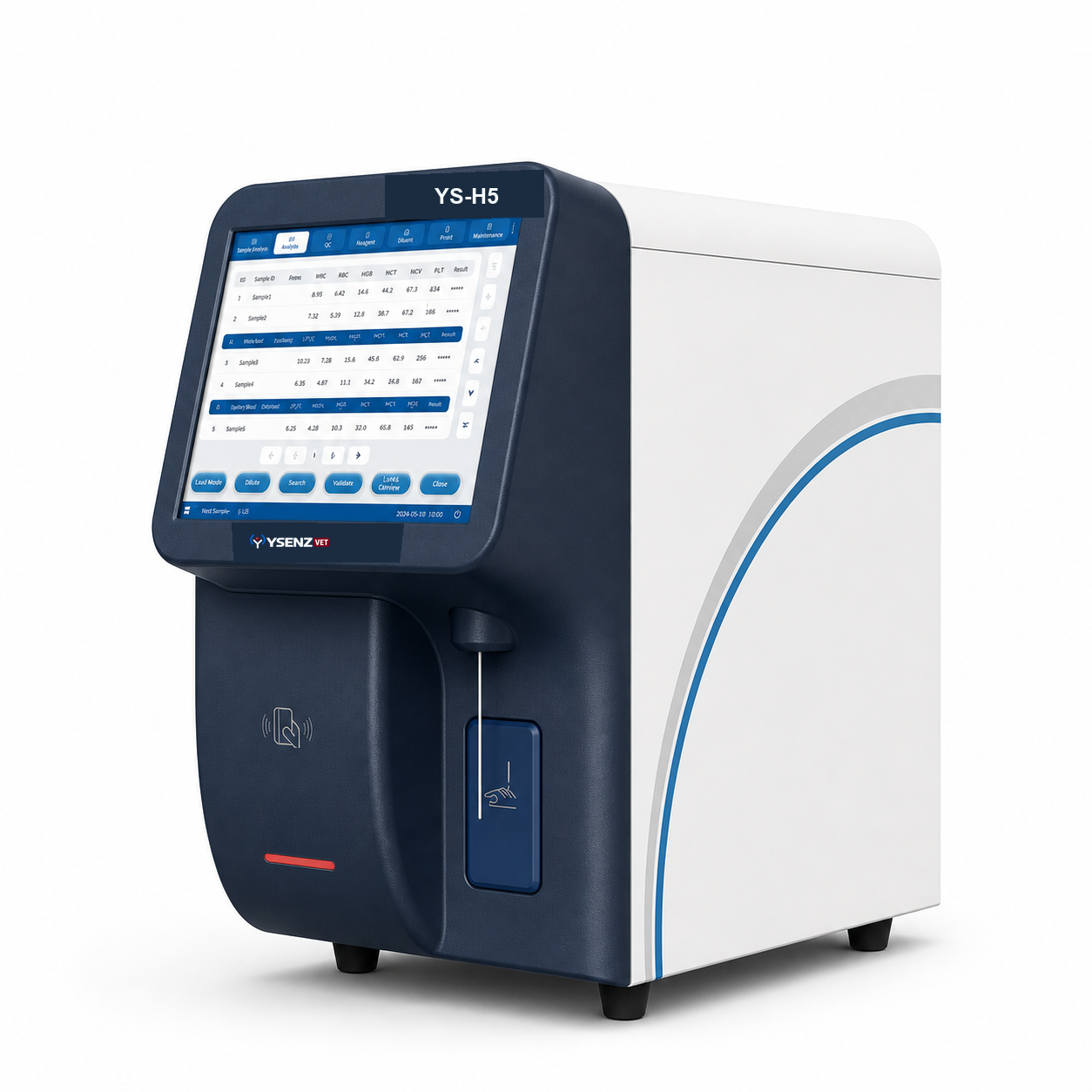

YS-H5
A compact 5-part veterinary hematology platform for efficient CBC+DIFF workflows. Multi-angle laser scattering, flow cytometry and electrical impedance are combined with flexible sample handling and connected result management.
01
5-part differentiation
Veterinary CBC+DIFF workflow with 25 reported parameters.
02
Efficient throughput
Processes up to 60 samples per hour.
03
Small sample
Requires no more than 20 uL per analysis.
04
Connected results
Large result storage and two-way LIS support.
TECHNICAL DATA
Specifications
Veterinary software, species profiles and reference intervals should be confirmed for each market configuration.
- Analysis mode
- CBC+DIFF veterinary configuration
- Throughput
- 60 samples/hour
- Sample volume
- <=20 uL
- Reported parameters
- 25
- Sample modes
- Whole blood and pre-diluted blood workflows
- Measurement technology
- 3-angle semiconductor laser scattering, flow cytometry, electrical impedance and cyanide-free HGB
- Display
- 10.4-inch LCD touchscreen
- Storage
- 100,000+ results
- Connectivity
- Two-way LIS with HL7, network and USB
- Dimensions / weight
- 280 x 470 x 460 mm; approximately 22 kg
